[普罗名特计量泵]隔膜计量泵CONCEPT C系列，电磁隔膜计量泵
![[普罗名特计量泵]隔膜计量泵CONCEPT C系列，电磁隔膜计量泵](/system/upload/image/item/20180813/201808131153157601.jpg "[普罗名特计量泵]隔膜计量泵CONCEPT C系列，德国进口电子计量泵-上海阔思推荐产品！")

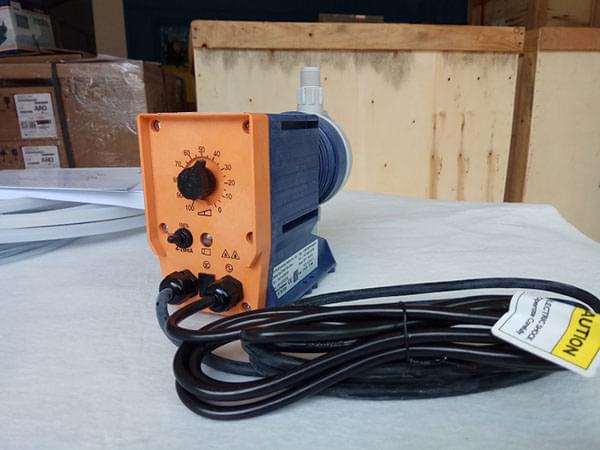

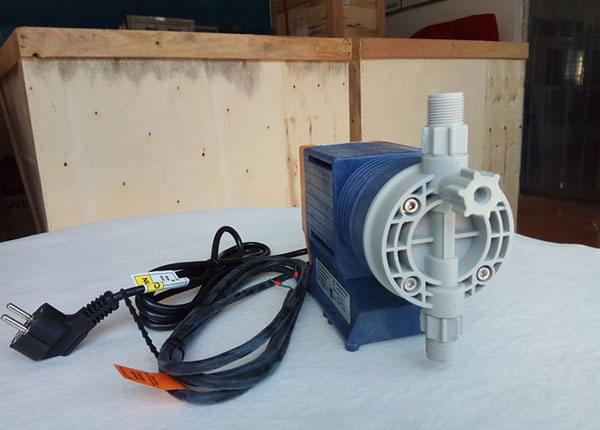

CONCEPT c系列电磁驱动计量泵

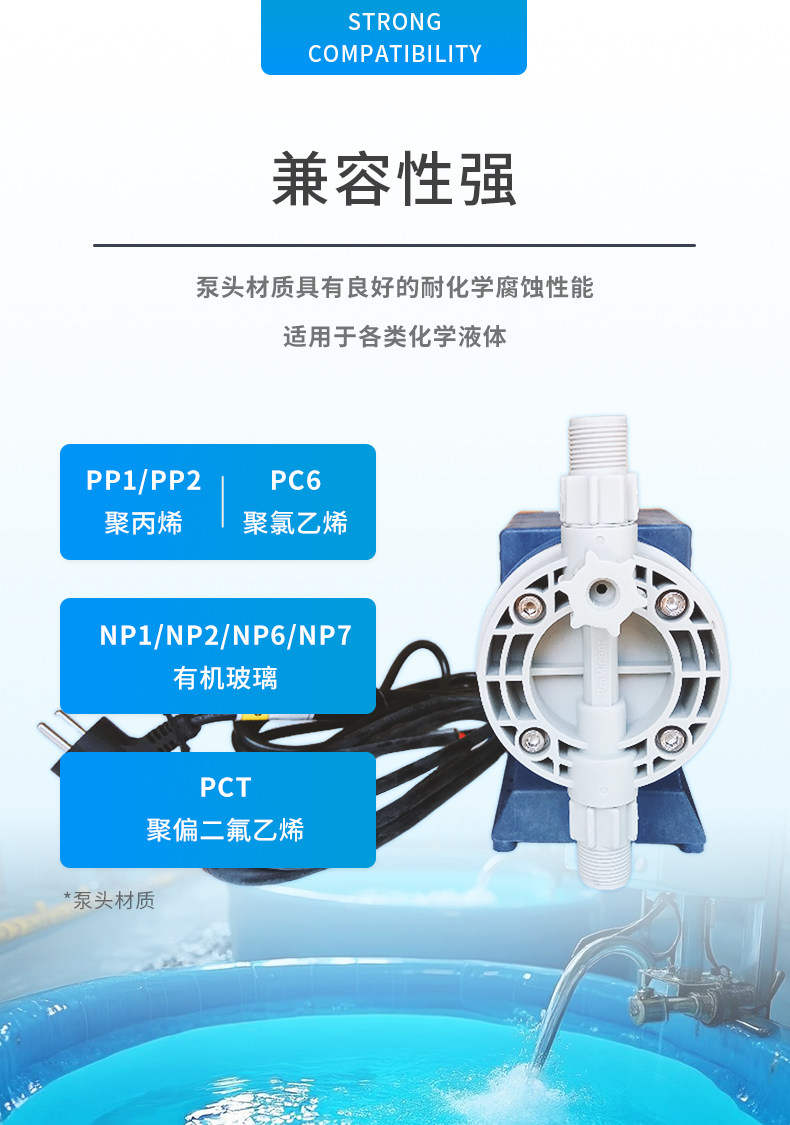

普罗名特CONCEPT c系列计量泵是由微处理器控制，短冲程、电磁驱动的隔膜计量泵。 CONCEPT c以其精巧的结构、可靠的性能、优良的性价比而为大多数OEM客户所接受。由于泵头材质具有良好的耐化学腐蚀性能，因而可以对各种工艺过程中几乎所有化学液体进行准确计量。例如碱液、酸液、消毒剂、凝结剂和水处理用各种化学药剂等。不但可手动控制、也可通过外部的脉冲或模拟信号控制。

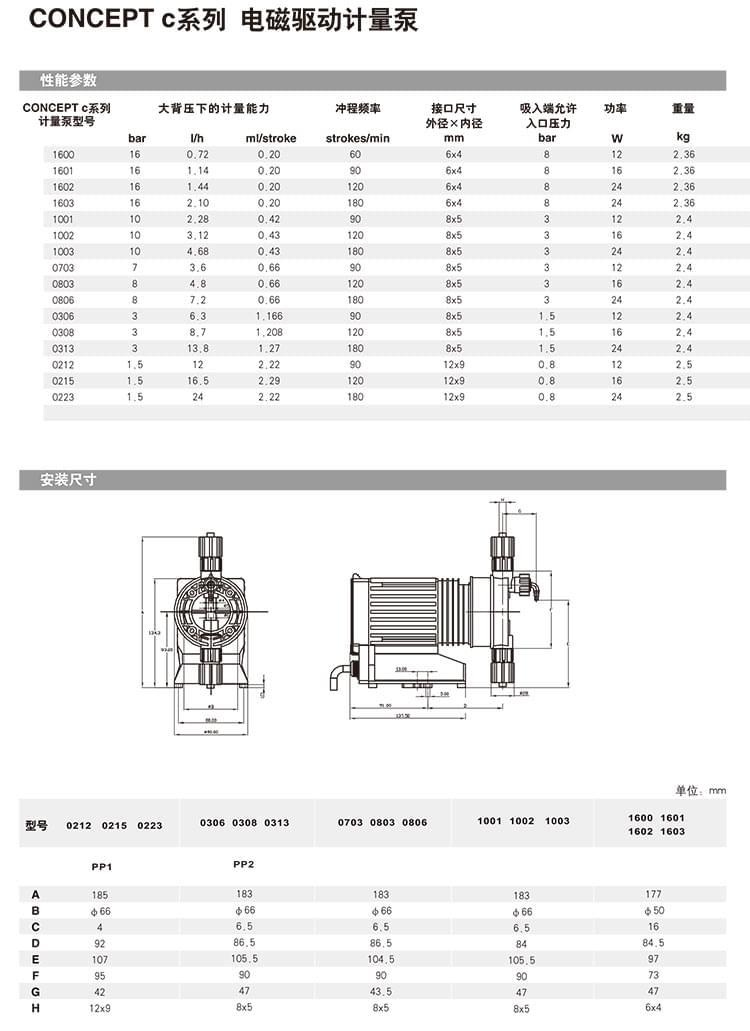

主要性能
流量范围：0.72～24.0 l/h
压力范围：1.5～16 bar
驱动方式：电磁驱动
控制方式：冲程长度在0〜100%范围内连续调节(佳调节范围在30〜100%)。

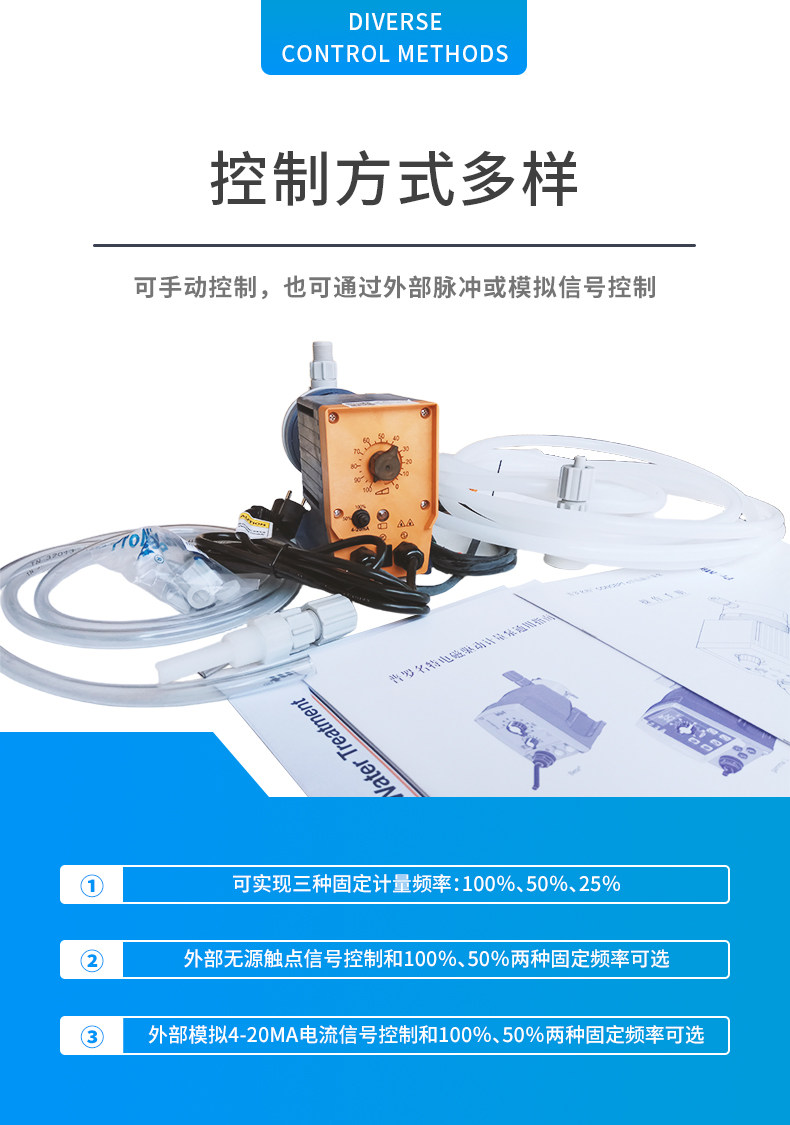

冲程频率控制形式多样：
1.手动调节的三种固定频率：100%、50%、25%
2.两种可切换频率：100%、50% +外部脉冲信号控制
3.两种可切换频率：100%、50% +外部模拟4～20 mA电流信号控制
计量精度：重复计量精度优于±2%

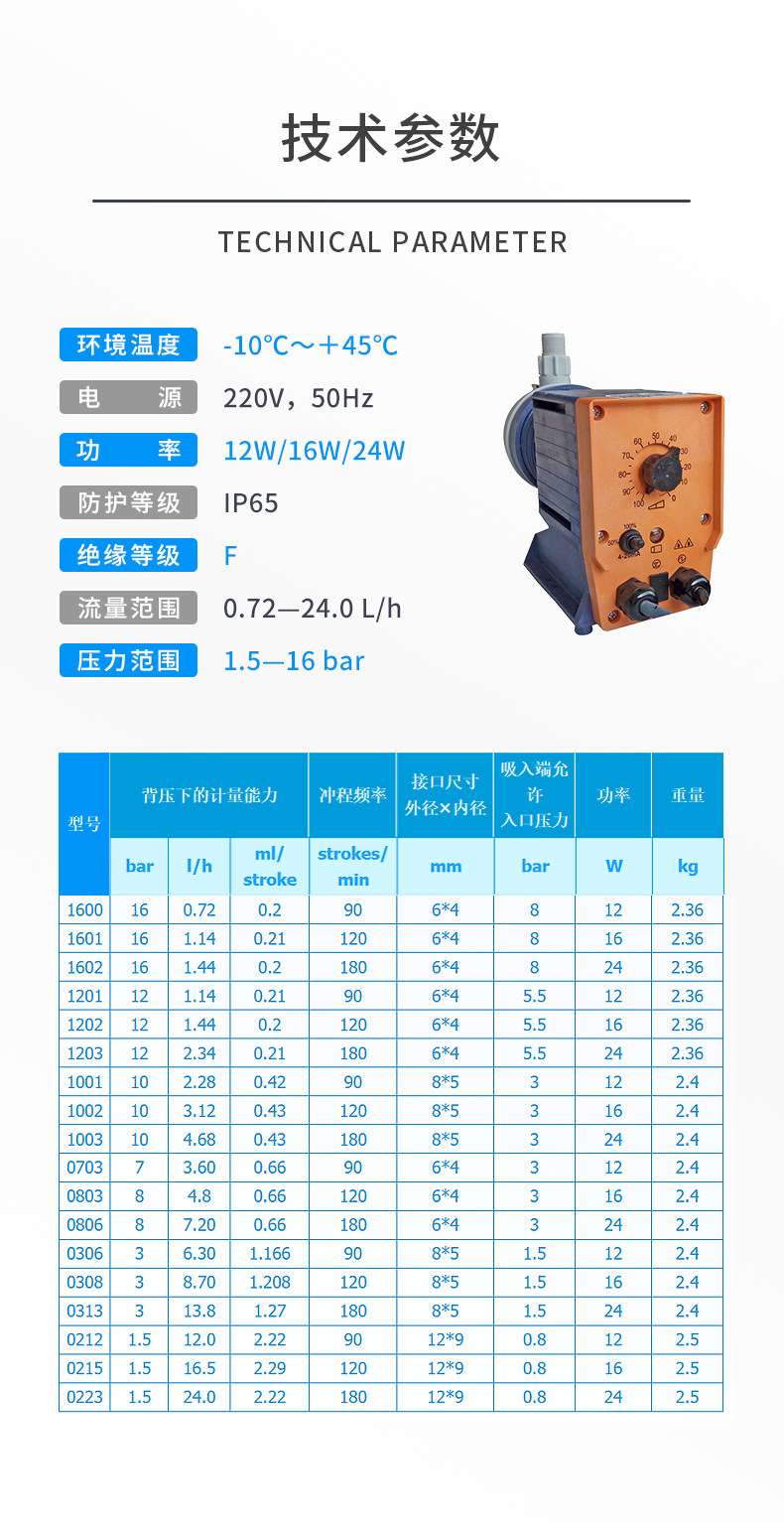

工作条件
◇ 环境温度：—10°C～+45°C
◇ 介质温度：—10°C～+50°C
◇ 介质粘度：<200 mPa • s
◇ 电 源：220/100V～230V，50/60Hz
◇ 功 率：12W/16W/24W
◇ 保护等级：IP65
◇ 绝缘等级：F
过流部件材质
泵头 | 吸排口阀体 | 密封件 | 阀球 | |
PP1 | 聚丙烯 | 聚丙烯 | 乙丙橡胶 | 陶瓷 |
PP2 | 聚丙烯 | 聚丙烯 | 氟化橡胶 | 陶瓷 |
注：PP1的前两位"PP"代表泵头材质，后一位"1 "代表密封件材质。
应用范围
可对水处理、石化、卫生、饮料等行业中几乎所有常见的化学液体进行计量，例如碱液、酸液、含氯的溶液、消毒剂、凝结剂、冷却塔用化学药剂等。
普罗名特计量泵CONCEPT C系列全系列完整型号： CONC1600PP1000A002 CONC1600PP1000A105 CONC1600PP1000A205 CONC1600PP1000A103 CONC1600PP1000A203 CONC1600PP2000A002 CONC1600PP2000A105 CONC1600PP2000A205 CONC1600PP2000A103 CONC1600PP2000A203 CONC1601PP1000A002 CONC1601PP1000A105 CONC1601PP1000A205 CONC1601PP1000A103 CONC1601PP1000A203 CONC1601PP2000A002 CONC1601PP2000A105 CONC1601PP2000A205 CONC1601PP2000A103 CONC1601PP2000A203 CONC1602PP1000A002 CONC1602PP1000A105 CONC1602PP1000A205 CONC1602PP1000A103 CONC1602PP1000A203 CONC1602PP2000A002 CONC1602PP2000A105 CONC1602PP2000A205 CONC1602PP2000A103 CONC1602PP2000A203 CONC1603PP1000A002 CONC1603PP1000A105 CONC1603PP1000A205 CONC1603PP1000A103 CONC1603PP1000A203 CONC1603PP2000A002 CONC1603PP2000A105 CONC1603PP2000A205 CONC1603PP2000A103 CONC1603PP2000A203 CONC1001PP1000A002 CONC1001PP1000A105 CONC1001PP1000A205 CONC1001PP1000A103 CONC1001PP1000A203 CONC1001PP2000A002 CONC1001PP2000A105 CONC1001PP2000A205 CONC1001PP2000A103 CONC1001PP2000A203 CONC1002PP1000A002 CONC1002PP1000A105 CONC1002PP1000A205 CONC1002PP1000A103 CONC1002PP1000A203 CONC1002PP2000A002 CONC1002PP2000A105 CONC1002PP2000A205 CONC1002PP2000A103 CONC1002PP2000A203 CONC1003PP1000A002 CONC1003PP1000A105 CONC1003PP1000A205 CONC1003PP1000A103 CONC1003PP1000A203 CONC1003PP2000A002 CONC1003PP2000A105 CONC1003PP2000A205 CONC1003PP2000A103 CONC1003PP2000A203 CONC0703PP1000A002 CONC0703PP1000A105 CONC0703PP1000A205 CONC0703PP1000A103 CONC0703PP1000A203 CONC0703PP2000A002 CONC0703PP2000A105 CONC0703PP2000A205 CONC0703PP2000A103 CONC0703PP2000A203 CONC0803PP1000A002 CONC0803PP1000A105 CONC0803PP1000A205 CONC0803PP1000A103 CONC0803PP1000A203 CONC0803PP2000A002 CONC0803PP2000A105 CONC0803PP2000A205 CONC0803PP2000A103 CONC0803PP2000A203 CONC0806PP1000A002 CONC0806PP1000A105 CONC0806PP1000A205 CONC0806PP1000A103 CONC0806PP1000A203 CONC0806PP2000A002 CONC0806PP2000A105 CONC0806PP2000A205 CONC0806PP2000A103 CONC0806PP2000A203 CONC0306PP1000A002 CONC0306PP1000A105 CONC0306PP1000A205 CONC0306PP1000A103 CONC0306PP1000A203 CONC0306PP2000A002 CONC0306PP2000A105 CONC0306PP2000A205 CONC0306PP2000A103 CONC0306PP2000A203 CONC0308PP1000A002 CONC0308PP1000A105 CONC0308PP1000A205 CONC0308PP1000A103 CONC0308PP1000A203 CONC0308PP2000A002 CONC0308PP2000A105 CONC0308PP2000A205 CONC0308PP2000A103 CONC0308PP2000A203 CONC0313PP1000A002 CONC0313PP1000A105 CONC0313PP1000A205 CONC0313PP1000A103 CONC0313PP1000A203 CONC0313PP2000A002 CONC0313PP2000A105 CONC0313PP2000A205 CONC0313PP2000A103 CONC0313PP2000A203 CONC0212PP1000A002 CONC0212PP1000A105 CONC0212PP1000A205 CONC0212PP1000A103 CONC0212PP1000A203 CONC0212PP2000A002 CONC0212PP2000A105 CONC0212PP2000A205 CONC0212PP2000A103 CONC0212PP2000A203 CONC0215PP1000A002 CONC0215PP1000A105 CONC0215PP1000A205 CONC0215PP1000A103 CONC0215PP1000A203 CONC0215PP2000A002 CONC0215PP2000A105 CONC0215PP2000A205 CONC0215PP2000A103 CONC0215PP2000A203 CONC0223PP1000A002 CONC0223PP1000A105 CONC0223PP1000A205 CONC0223PP1000A103 CONC0223PP1000A203 CONC0223PP2000A002 CONC0223PP2000A105 CONC0223PP2000A205 CONC0223PP2000A103 CONC0223PP2000A203 |
